Adoption of high-output, long-life lamps
Three specially shaped 200W low-pressure mercury lamps are used to achieve high output and highly uniform finish. A large area of 300mm x 300mm is available for treatment.
Compact & Low Cost
Safety Measures
The safety design eliminates the risk of ozone or UV leakage, and the lamp turns off when the door is opened.
| Item | Specification |
|---|---|
| Model | ASM2003N |
| Lamp | 200W 3lamps |
| Outside dimensions | Main unit W550 × D670 × H450（mm） |
| Power supply W300 × D500 × H330（mm） | |
| Approximate weight | Irradiator 20kg、Power supply 20kg |
| UV lamp illuminance | 25mW/cm2 more（Irradiate distance 10mm Center position 300mm × 300mm area） |
| Irradiate distance | 5～150（mm） ※ Manual variable by lab jack |
| Stage Size | W350 × D320（mm） |
| Others |
|
| Input-Output conditions | Single phase AC200V 50/60Hz |
| Current value | 5.5A |
| Power consumption | 890W |
| Optional | Ozone decomposition equipment Heater（Hot plate） |

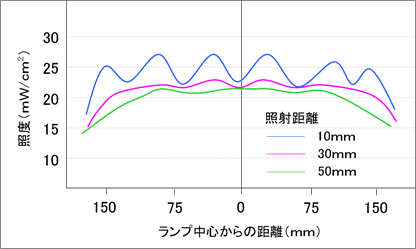

Illuminance data
※ The measurement wavelength is 253.7nm.
※ The illuminance value varies greatly depending on the model of the measurement device.
※ The value varies depending on the operating environment.
