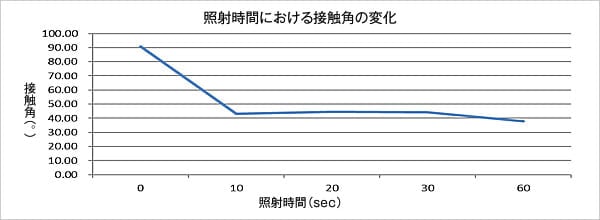

Polycarbonate
| Size | ： | 20mm square |
| Number of measurement points | ： | 5 points |
| Excimer Irradiation equipment | ： | ASM86 Excimer |
| Irradiation distance | ： | 2mm |
| Contact angle meter | ： | B100 |
| Liquid drop volume | ： | 1.0μL |
| Measurement data after 2 sec. of liquid drop | ||
| Irradiation time (sec) | 0 | 10 | 20 | 30 | 60 |
| Contact angle (°) | 90.96 | 43.08 | 44.51 | 44.16 | 37.89 |

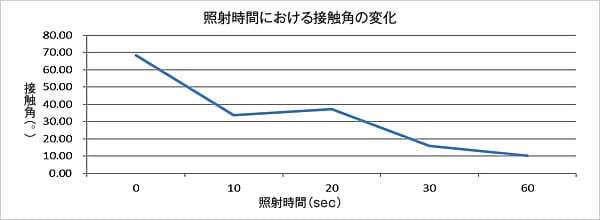

PMMA（Polymethyl methacrylate resin）
| Size | ： | 20mm square |
| Number of measurement points | ： | 5 points |
| Excimer Irradiation equipment | ： | ASM86 Excimer |
| Irradiation distance | ： | 2mm |
| Liquid drop volume | ： | B100 |
| Liquid drop volume | ： | 1.0μL |
| Measurement data after 2 sec. of liquid drop | ||
| Irradiation time (sec) | 0 | 10 | 20 | 30 | 60 |
| Contact angle (°) | 68.17 | 33.56 | 37.26 | 16.02 | 10.31 |

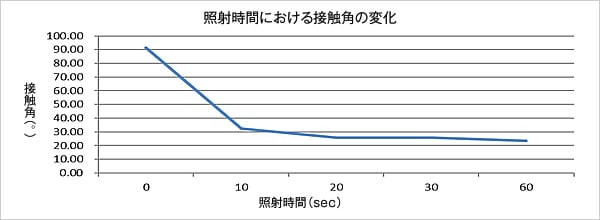

ABS
| Size | ： | 20mm square |
| Number of measurement points | ： | 5 points |
| Excimer Irradiation equipment | ： | ASM86 Excimer |
| Irradiation distance | ： | 2mm |
| Contact angle meter | ： | B100 |
| Liquid drop volume | ： | 1.0μL |
| Measurement data after 2 sec. of liquid drop | ||
| Irradiation time (sec) | 0 | 10 | 20 | 30 | 60 |
| Contact angle (°) | 91.53 | 32.47 | 25.90 | 25.89 | 23.66 |

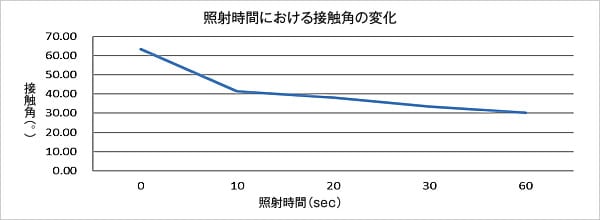

PET（Polyethylene terephthalate）
| Size | ： | 20mm square |
| Number of measurement points | ： | 5 points |
| Excimer Irradiation equipment | ： | ASM86 Excimer |
| Irradiation distance | ： | 2mm |
| Contact angle meter | ： | B100 |
| Liquid drop volume | ： | 1.0μL |
| Measurement data after 2 sec. of liquid drop | ||
| Irradiation time (sec) | 0 | 10 | 20 | 30 | 60 |
| Contact angle (°) | 63.26 | 41.22 | 38.10 | 33.43 | 30.16 |
