A more compact model integrating the ASM401N supporting 50 mm square and the ozone decomposition equipment. It eliminates the need for ducts and blowers for ozone decomposition, which used to take up a lot of space.

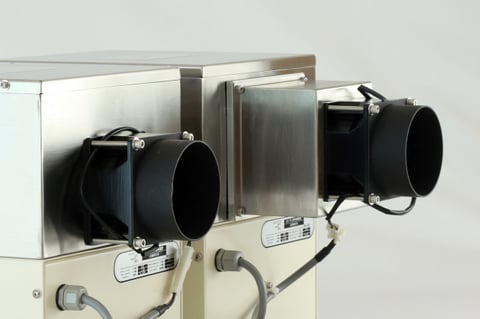

※ The ASM401oz differs from the ASM401N only in a portion of the back.
※ After installing ASM401N, we also offer remodeling to ASM401oz.
| Item | Specification |
|---|---|
| Model | ASM401oz |
| Lamp | 40W 1lamp |
| Outside dimentions | W200 × D374 × H265（mm） |
| UV lamp Illuminance | 10mW/cm2 more（Irradiation distance 10mm Center position 50mm × 50mm area） |
| Irradiation distance | 10～50（mm） ※ Adjustable in 10mm increments |
| Stage Size | W100 × D100（mm） |
| Others |
|
| Input-Output conditions | Single phase AC100V |
| Power consumption | 37W（Reference value） |
Illuminance data
※ The measurement wavelength is 253.7nm.
※ The illuminance value varies greatly depending on the model of the measurement device.
※ The value varies depending on the operating environment.
