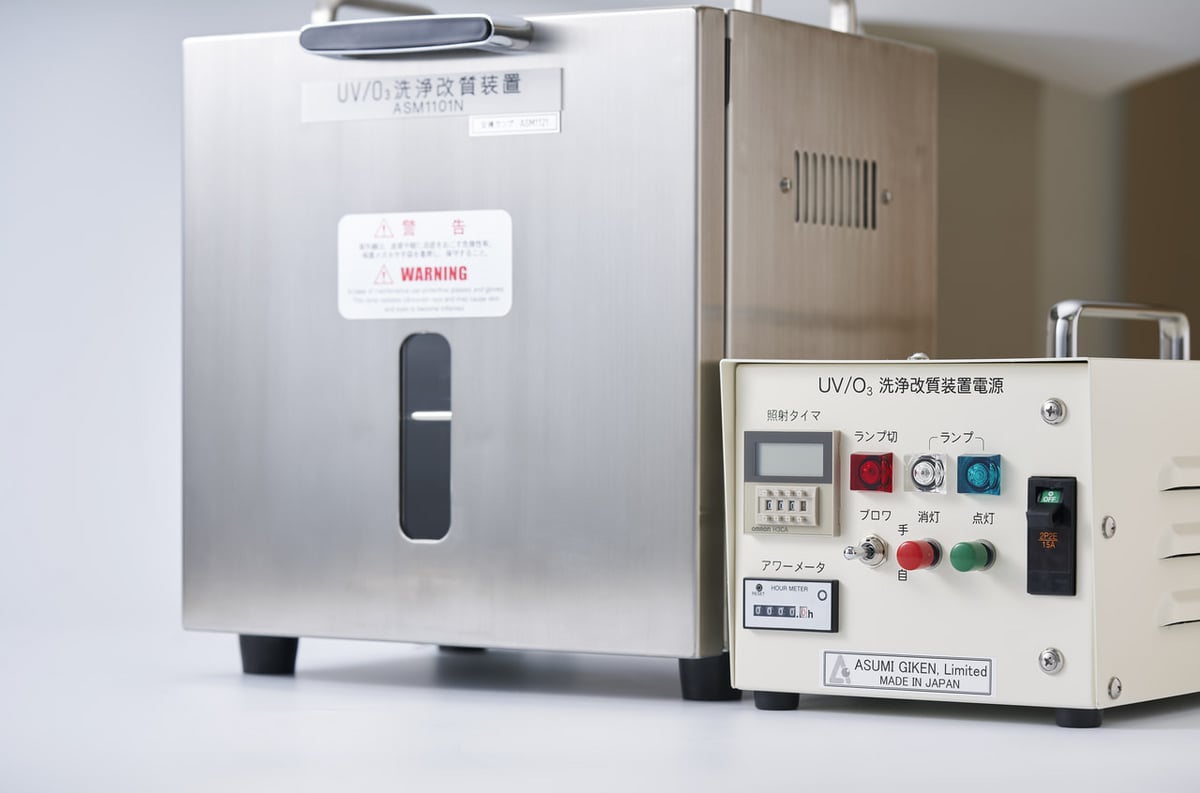

• 1101N front
  • 1101N side
  • 1101N back
  • 1101NUV lamp

Adoption of high-output, long-life lamps

Adoption of specially shaped low-pressure mercury lamps enables high output and high uniformity of finish.

Compact & Low Cost

Easy-to-install, desktop-type experimental equipment. Space-saving and low cost.

Easy Operation

Anyone can easily operate the equipment by simply pressing a button from lamp lighting, irradiation time setting, to ozone exhaust. The irradiation distance can be adjusted in 10 mm increments for accurate data acquisition.

Safety Measures

The safety design eliminates the risk of ozone or UV leakage, and the lamp turns off when the door is opened.

Item Specification
Model ASM1101N
Lamp 110W 1lamp
Outside dimensions Main unit  W300 × D360 × H355(mm)
Power supply W185 × D434 × H190(mm)
Approximate Weight Irradiator 8kg、Power supply 10kg
UV lamp Illuminance 20mW/cm2 more(Irradiation distance 10mm Center position 100mm × 100mm area)
Irradiation distance 10~100(mm)※ Adjustable in 10mm increments
Stage Size W230 × D190 (mm)(Maximum height 95mm)
  • Prevention of electrode wear by lamp flashing
  • Irradiation time display
  • Irradiation time controlled by timer
  • Safety features
  • Lamp off when door is open
  • Lamp burnout detection
  • With ozone exhaust blower(OD:Φ75)、Hose included(2.5m)
Input-Output conditions Single phase AC100V
Power consumption 210W
Optional Ozone decomposition equipment
Heater(Hot plate)

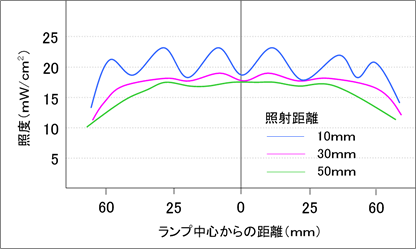

Illuminance data


※ The measurement wavelength is 253.7nm.
※ The illuminance value varies greatly depending on the model of the measurement device.
※ The value varies depending on the operating environment.
