Surface modification of 200mm square area

Adoption of high-output, long-life lamps

Adoption of specially shaped 200W low-pressure mercury lamps enables high output and high uniformity of finish. A large area of 200mm x 200mm is available for treatment.

Compact & Low Cost

Safety Measures

The safety design eliminates the risk of ozone or UV leakage, and the lamp turns off when the door is opened.

Item Specification
Model ASM2001N
Lamp 200W 1lamp
Outside dimensions Main unit  W370 × D410 × H350(mm)
Power supply  W185 × D525 × H190(mm)
Approximate Weight Irradiator 10kg、Power supply 12kg
UV lamp Illuminance 20mW/cm2 more(Irradiation distance 10mm Center position 200mm × 200mm area)
Irradiation distance 10~100(mm)  ※ Adjustable in 10mm increments
Stage Size W280 × D240(mm)
  • Prevention of electrode wear by lamp flashing
  • Irradiation time display
  • Irradiation time controlled by timer
  • Safety features
  • Lamp off when door is open
  • Lamp burnout detection
  • With ozone exhaust blowerHose included
Input-Output conditions Single phase  AC100V
Current value 3.8A
Power consumption 320W
Optional Ozone decomposition equipment
Heater(Hot plate)

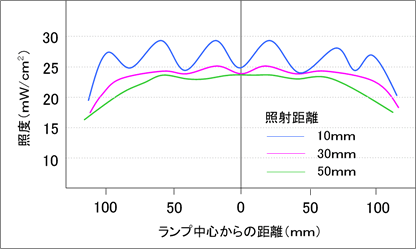

Illuminance data


※ The measurement wavelength is 253.7nm.
※ The illuminance value varies greatly depending on the model of the measurement device.
※ The value varies depending on the operating environment.
